Unable to apply projection to OpenStreetMapOverlay

ThinkGeo UI for Desktop WPF
1

In my WPF app, when attempting to apply a projection to the OpenStreetMapOverlay I get the following error message:

ProjectionIssue
ProjectionIssue827×713 18 KB

I was able to replicate this in the DisplayOpenStreetMapOverlaySample of the HowDoI sample app with the following code.

osmMapsOverlay.ProjectionConverterFromServerProjection = new ProjectionConverter(
       Projection.GetGoogleMapProjString(),
       Projection.GetProjStringByEpsgSrid(3348));

osmMapsOverlay.ProjectionConverterFromServerProjection.Open();

Cheers,
John

2

Hi John,

Did you try to install ThinkGeo.UnmanagedProj via nuget?

Thanks,
Leo

3

Hi Leo,

I’ve tried this on the HowDoI example WPF app with version 12.3.10 of ThinkGeo.UnmanagedProj.
I also tried updating all the packages included in the example app to the latest beta versions but the issue was still present.

Thanks,
John

4

Hi John,

We need to use UnmanagedProjectionConverter, and ThinkGeo.Dependency.Gdal is required also.

osmMapsOverlay.ProjectionConverterFromServerProjection = new UnmanagedProjectionConverter(
        Projection.GetGoogleMapProjString(),
        Projection.GetProjStringByEpsgSrid(3348));

Here’s a sample, feel free to download and play around with it.
WpfApp1.zip (10.5 KB)

Thanks,
Leo

5

Hello,
I know, this is an old thread, but I get an exception, when try to project OSM overlay with Gdal.
I use version 14.4 beta 059. My code:

ThinkGeo.Core.GdalProjectionConverter projectionConverter = new GdalProjectionConverter(3857, 25832);
this.ProjectionConverter = projectionConverter;
this.ProjectionConverter.Open();

this is OpenStreetMapOverlay,

Regards,
Torsten

6

Hi Juergen,

  1. we have several samples in the latest HowDoI showing how to reproject an XYZ based layer between Spherical Mercator (3857) and Decimal Degrees (4326).
  2. We found it does have some issues reprojecting to certain projections (including 25832) though, and we’ve fixed it in the latest beta (14.4.0-beta059).
  3. Please pull the latest beta and the following changes to the "Display Raster from XYZ Server will do the projection as expected:
   _osmLayer = new OpenStreetMapAsyncLayer();
   ......

  switch (radioButton.Tag.ToString())
  {
  case "3857":
      MapView.MapUnit = GeographyUnit.Meter;
      _osmLayer.ProjectionConverter = null;
      break;

  case "4326":
      MapView.MapUnit = GeographyUnit.Meter;
      _osmLayer.ProjectionConverter = new GdalProjectionConverter(3857, 25832);
      break;

  default:
      return;
  }

  await _osmLayer.CloseAsync();
  await _osmLayer.OpenAsync();

  var extentIn25832 = new RectangleShape(166021.4, 9328006,833978, 0);
  MapView.CenterPoint = extentIn25832.GetCenterPoint();
  MapView.CurrentScale = MapUtil.GetScale(MapView.MapUnit, extentIn25832, MapView.MapWidth, MapView.MapHeight);
  await MapView.RefreshAsync();

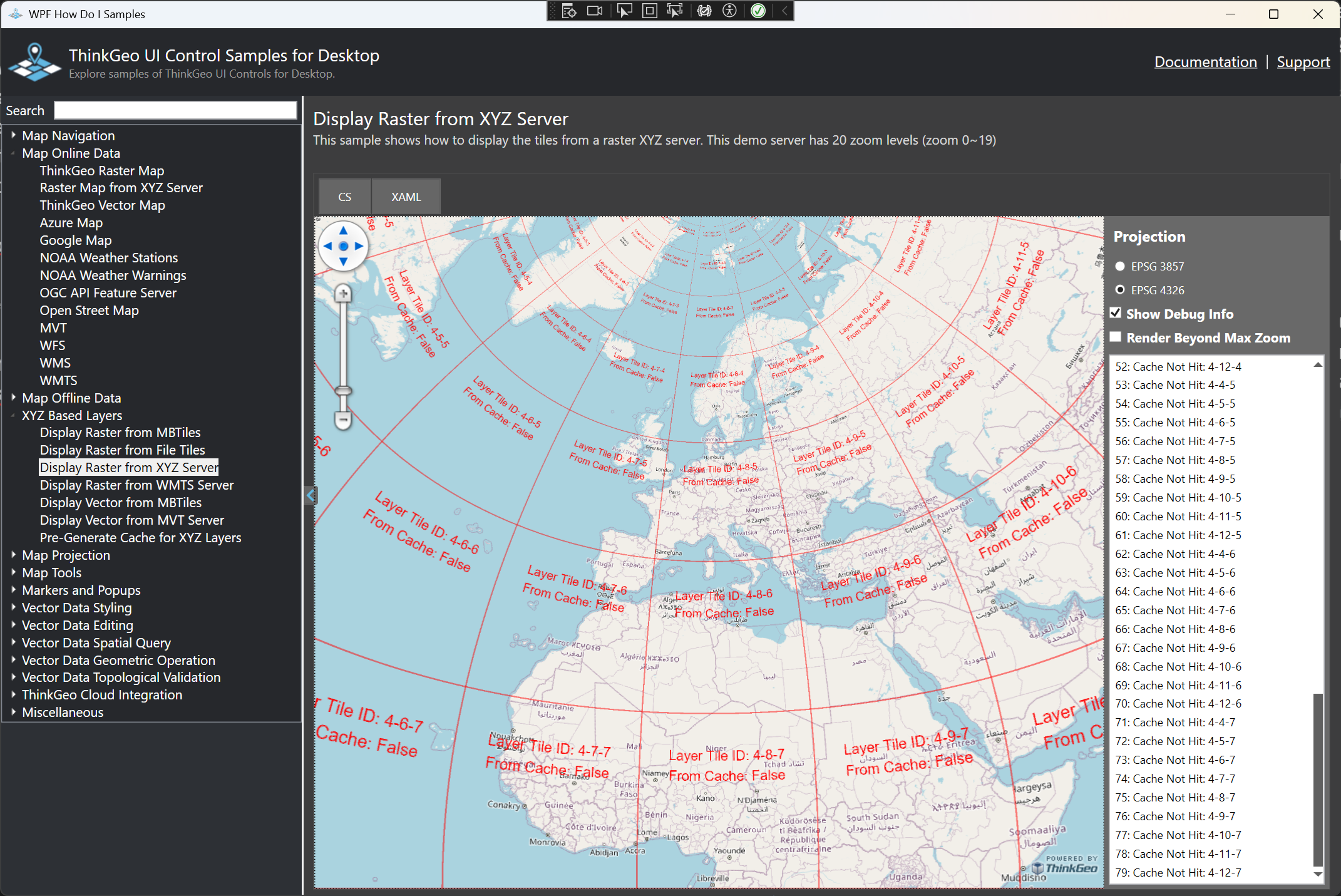

Here is what it looks like with the above changes on the existing HowDoI sample

image2142×1431 1.4 MB

Thanks,
Ben

7

Hallo Been,
it works like a charm…
Thanks,
Torsten

8

That’s Awesome ! :+1:
